A selection of ARTES steam converting stations.

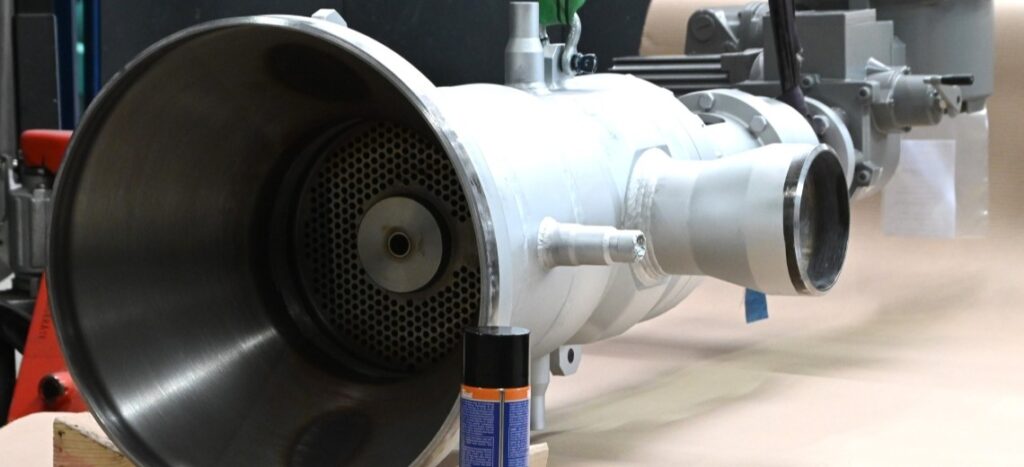

An ARTES steam converting station, ready for shipping. © ARTES.
Note: The PDFs open in a new tab. Please, ensure that your browser settings are set to „Show downloads in a new tab“.
| Power t/h | Pressure reduction pe/pa in bar | DN | Project | Steam test device | Order details |
|---|---|---|---|---|---|
| 53 | 41/5 | 12"/36" #600 | Sasol | PDF ↗ | |
| 35 | 38/1 | 150/1000 | Zofingen | PDF ↗ | |
| 133 | 35/0,6 | 300/1000 | Cottbus | PDF ↗ | |
| 100 | 76/19 | 150/300 | Salzgitter | PDF ↗ | |
| 230 | 81/6 | 250/700 | Krasnodar | PDF ↗ | |
| 35 | 70/4 | 150/400 | Berlin | PDF ↗ | |
| 53 | 41/5 | 12"/36" #600 | Sasol | PDF ↗ | |
| 29 | 85/2,5 | 125/500 | Bihov | PDF ↗ | |
| 5,5 | 85/2,5 | 50/250 | Bihov | PDF ↗ | |
| 26 | 85/2,5 | 100/500 | Bihov | PDF ↗ | |
| 6 | 73/10 | 50/100 | Berlin | PDF ↗ | |
| 40 | 48/5 | 150/500 | Ludwigshafen | PDF ↗ | |
| 16 | 41/7,6 | 125/200 | Hamburg | YES Device Documentation ↗ | PDF ↗ |
| 110 | 82/16 | 8"/18" | Nigeria | PDF ↗ | |
| 37 | 70/11 | 100/250 | Schwedt | YES Device Documentation ↗ | PDF ↗ |
| 50 | 88/14 | 125/250 | Kralupy | PDF ↗ | |
| 8 | 33/4 | 80/200 | Nysa | PDF ↗ |
